CBS-C/D series backforward curved centrifugal fan

Structural features: single inlet, backforward curved impeller, high efficiency and high static pressure, detachable structure, multiple angle interchangeability, transmission mode of C/D type two structures.

Model range: NO.280-2000, a total of 18 models available.

Air volume range:500-250000m³/h

Total pressure range:300-4000Pa

Application:Widely used for ventilation and air exchange in industrial and mining enterprises, metallurgy, petrochemicals, environmental protection, nuclear power, waste incineration, painting and other places.

Working environment: When the conveying medium for ventilation and transportation is air, the maximum temperature should not exceed 80C; When The moving gas by the induced draft fan is flue gas, the maximum temperature shall not exceed 200 C (special design is required if exceeded).

(Explosion proof,anti-corrosion and high temperature resistant structures can be specially customized)

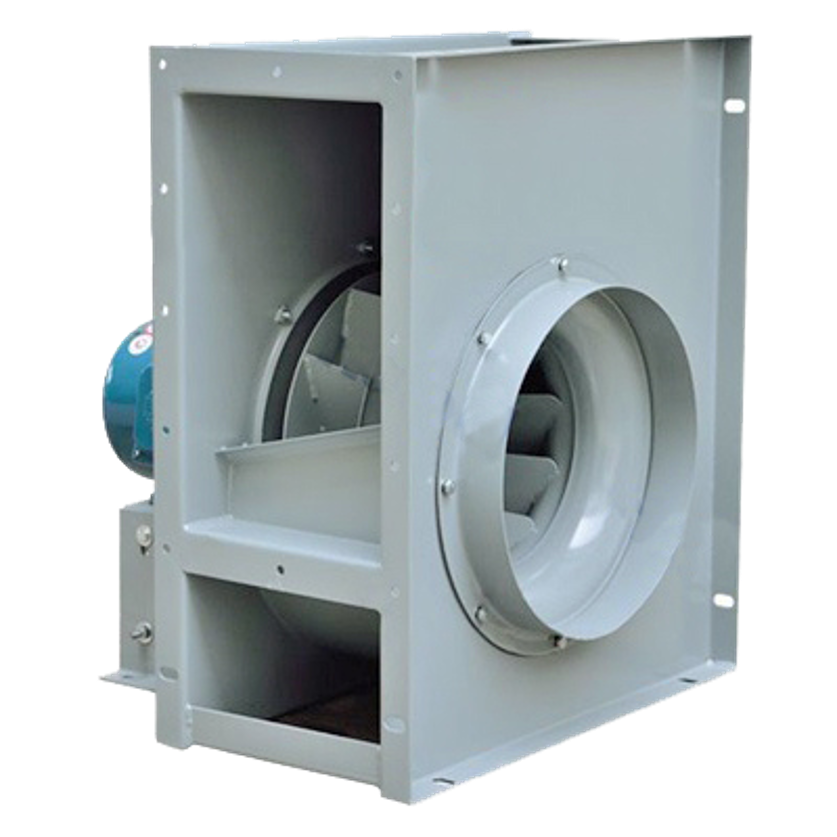

CBS-PL series backforward curved centrifugal fan

Structural features: single inlet, direct drive, backforward curved impeller, high efficiency and high static pressure, vertical installation, without volute shell.

Model range: NO.355-710, a total of 7 models available.

Air volume range:840-25600m³/h

Total pressure range:300-4000Pa

Application: Special equipment for painting matching.

Working environment: The conveying medium should not self ignite, be non-toxic, or corrosive, and its temperature should not exceed 80℃.

(Explosion proof,anti-corrosion and high temperature resistant structures can be specially customized)

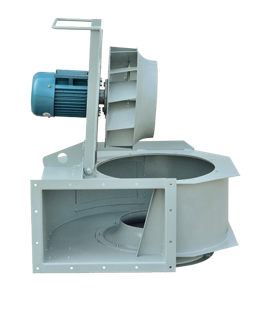

CBS-AL series backforward curved centrifugal fan

Structural features: single inlet, direct drive, backforward curved impeller, high efficiency and high static pressure, can be installed vertically, impeller can be designed with flip cover, which is easy to pulled out for cleaning.

Model range: NO.355-710, a total of 7 models available.

Air volume range:840-25600m3/h

Total pressure range:300-4000Pa

Application: Specialized for painting equipment and kitchen use.

Working environment: The conveying medium should be not self ignite, be non-toxic, or corrosive, and its temperature should not exceed 80 C.

(Explosion proof,anti-corrosion and high temperature resistant structures can be specially customized)

CBS-A series backforward curved centrifugal fan

Structural features: single inlet, direct drive, backforward curved impeller,high efficiency and high static pressure, adjustable at four angles of 0°,90°,180°,270°.

Model range: NO.250-1400, a total of 15 models available.

Air volume range: 500-110000m3/h Total pressure range:300-5000Pa

Application: Air supply and exhaust or matching for equipment.

Working environment: The conveying medium should be not self ignite, be non-toxic, or corrosive, and its temperature should not exceed 80 ℃.

(Explosion proof,anti-corrosion and high temperature resistant structures can be custom made)
